FLUKE Fluke-369 FC LEAKAGE CURRENT CLAMP METER (AC 60A; True RMS, WIRELESS)

Electrical Specifications

Measurement functionAlternating current

AC ampere range3 mA, 30 mA, 300 mA, 3 A, 30 A, 60 A

Range selectionmA / A: manual selection

3 mA / 30 mA / 300 mA: automatic selection

3 A / 30 A / 60 A: automatic selection

Range / Resolution3 mA¹ / 0.001 mA

30 mA / 0.01 mA

300 mA / 0.1 mA

3 A / 0.001 A

30 A / 0.01 A

60 A / 0.1 A

Accuracy – filter activated (40 to 70 Hz), filter off (40 to 1 kHz)²3 mA – 30 A

60 A1% + 5 digits

2% + 5 digits

Frequency40 Hz to 1 kHz

Crest Factor3

After calibration accuracy is valid for one year. Accuracy is expressed as ± (% of reading + digits). Reference conditions 23 ±5 °C and a maximum relative humidity of 80%.

¹The minimum value is 10 μA rms.

²Outside of the TC / °C 18 °C to 28 °C, 0.02 + 1

Physical

Display (LCD)Digital readout: 3300 count

Display refresh rate4 times / sec

Maximum conductor diameter61 mm

Dimensions257 x 116 x 46 mm

Weight600 g

Battery2 AA, IEC LR6, NEDA 15A, alkaline

Battery lifeExpected battery life, without using backlight and spotlight, is more than 150 hours

Automatic shut-downMeter automatically shuts down after 15 minutes of inactivity

Safety and Environmental Specifications

General safetyIEC 61010-1: Pollution Degree 2

Measurement safetyIEC 61010-2-032: CAT III 600 V / CAT IV 300 V

Operating temperature-10 °C to +50 °C

Storage temperature-40 °C to +60 °C

Operating humidityNon-condensing (<10 °C)

90% relative humidity (10 °C to 30 °C)

75% relative humidity (30 °C to 40 °C)

45% relative humidity (40 °C to 50 °C)

Protection classIEC 60529: IP30 (jaw closed)

Operating altitude2000 m

Storage altitude12000 m

Current sensor action categoryIEC 61557-13: Class 1, ≤100 A / m

Electromagnetic compatibility (EMC)

International

IEC 61326-1Industrial Electromagnetic Environment

CISPR 11Group 1 Class B

Group 1Generated inside the equipment and / or use radio frequency energy associated with conducting the energy for the device's own internal functions is essential.

Class BEquipment for home appliances and residential buildings directly connected to a low voltage power supply network equipment. When this device is connected to a test object, it may exceed the emission levels produced by CISPR 11 requirements.

Korea (KCC): Class A Equipment (Industrial Broadcasting & Communication Equipment)

Class AThis product meets the requirements of industrial electromagnetic equipment, vendors or users should be aware of this. This device is intended for use in a commercial environment, instead of the home environment.

USA (FCC): 47 CFR 15 subpart B. This product is considered an exempt device per clause 15.103.

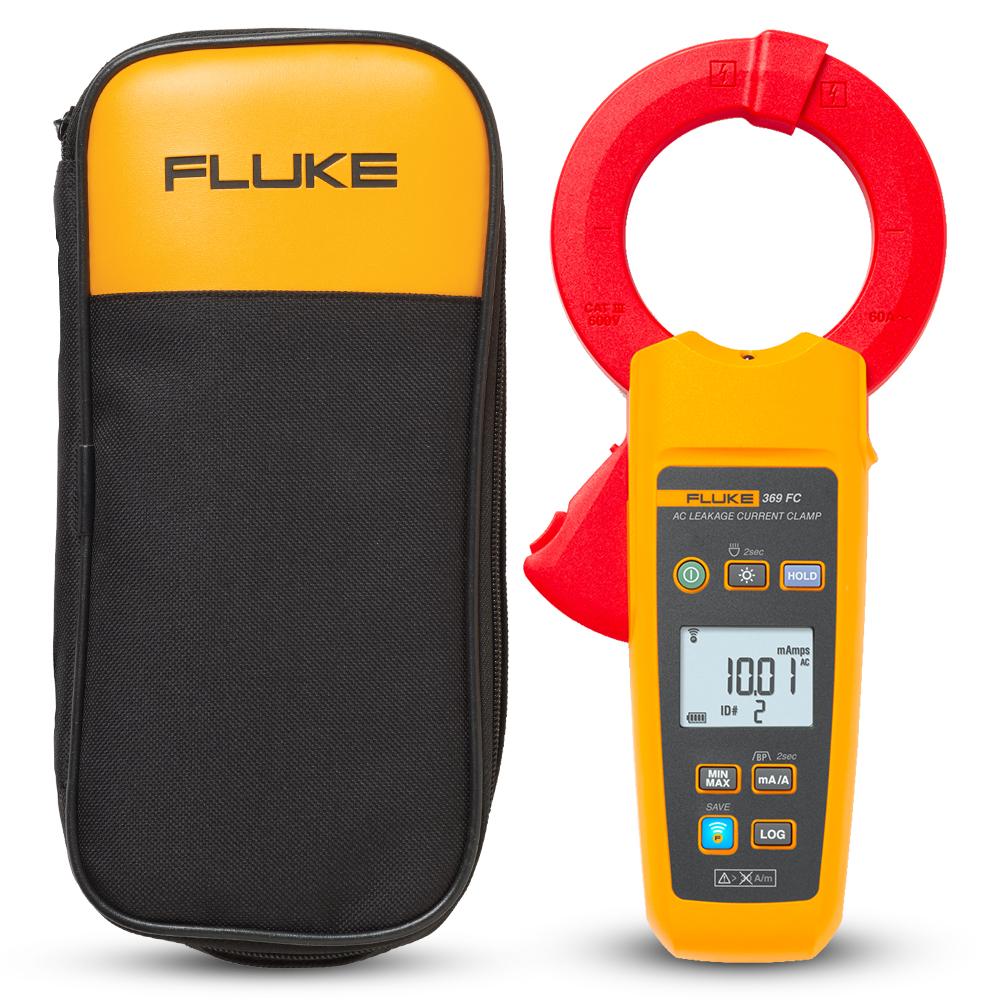

Includes:

Leakage Clamp Meter

Soft case

Safety Manual

Batteries: 2 AA
